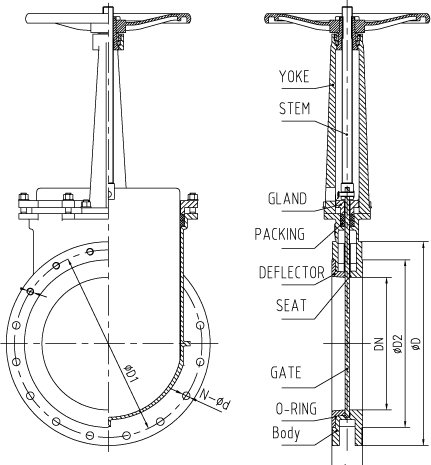

Deflector Cone KGV

  • Deflector Cone Knife gate valved
  • Deflector Cone Knife gate valved
  • Deflector Cone Knife gate valved
Deflector Cone Knife gate valvedDeflector Cone Knife gate valvedDeflector Cone Knife gate valved

Deflector Cone Knife gate valved

  • Product description: WCB,CF8,CF8M, 904L,SS2205 ect. Size Range: DN50 (2'')-DN600 (24'')
  • INQUIRY

Deisgn std: MSS SP 81, BS, JIS , DIN ,GB ect.

End connection: ANSI 150, JIS10K, PN10/PN16  etc.
Seat material: NBR, EPDM, PTFE, VITON ,METAL  etc.
Operation: rising handle wheel, no-rising handle wheel, gear, pneumatic, electric actuator, hydraulic,  Lever, etc.

Testing

Testing includes a body shell test, a seat test and a cycling test to insure proper functioning of moving parts.
• Standard Shell test: Hydro test at 1.5 times the rated CWP (cold working pressure) – Zero allowable leakage
• Standard Resilient Seat test: Hydro test at 15 psi (1 bar) and rated CWP
Max. operating pressures for  Knife Gate Valves:
DN050-DN250:  10 bar
DN300-DN400:    6 bar
DN450:             5 bar
DN500-DN600:    4 bar
